Snowdon

Description based on material supplied by the layout owner

Snowdon
Peter Booth 1:38 gauge 8mm scale

This layout portrays the two foot narrow gauge railway at Rhyd Ddu, the southern terminus of the North Wales Narrow Gauge Railways’ line to Dinas. The station was called Rhyd Ddu until the late 1880’s when it took on the name Snowdon, finally in later years it was called South Snowdon.

We have modelled as it is thought to have been in the early part of the 20th Century, and is largely based upon photographs and information found in the Welsh Highland Heritage Magazine. The railway was eventually incorporated into the ill fated Welsh Highland Railway in 1922. However it is now mid point of the new expanding Welsh Highland Railway, which is one of the most impressive narrow gauge railways in the British Isles.

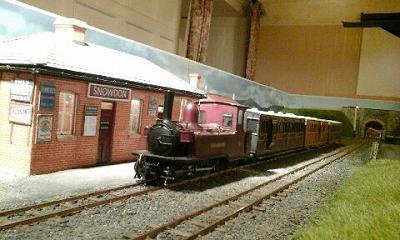

Every attempt has been made to model the station building as accurately as possible. However, it has been necessary to shorten the run round loop considerably to keep the layout down to a reasonable size. It has also been necessary to model the area around the station as it might have been, using a degree of modelling license, due to the lack of detailed photographic information away from the immediate station area.

As with my earlier Dinas layout, the intention has always been to model everything virtually from scratch, and this has largely been accomplished, the unusual scale of 8mm to one foot leaving little option. The track is spiked to wooden sleepers in the prototypical manner, the ballast being produced from crushed slate. The locomotives operated on the layout were constructed from nickel silver brass, closely following the dimensions on the manufacturers original drawings. Coaches and wagons were constructed from wood, nickel silver or plasticard on nickel silver underframes.

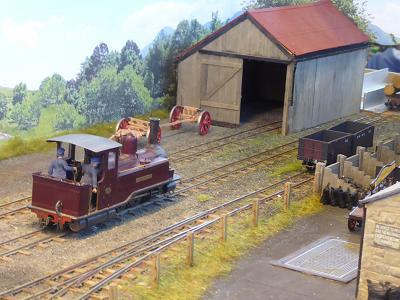

Stonework on the buildings has been produced by building up layers of Polyfilla onto a scribed plaster base, the resulting textured finish being painted in water colours. The corrugated iron for the sheds and roofs was produced from Slaters sheet, suitably trimmed and pinned. Grass is made from individual pieces of Gaugemaster grass mat together with static grass.

The major structures are now fully completed with internal lighting to show the detail. There are still some areas that are being developed and this will probably continue over the next year or so. It is hoped that it will be possible to connect Snowdon NWNGR to Dinas NWNGR at some time in the not too distant future. This would be total length of 34 feet.
